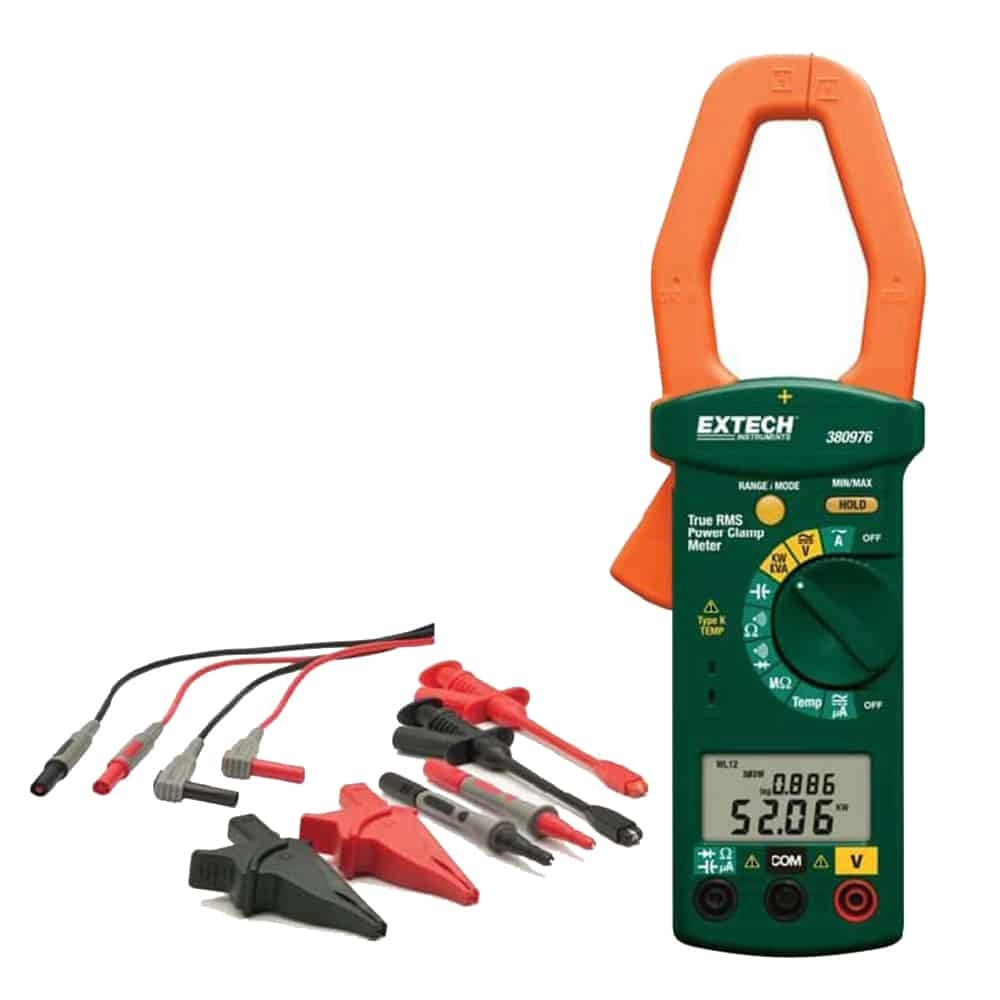

Extech 380976-K True RMS AC/DC Clamp Meter Kit, 1000A, 40mm Jaw, CAT III 600V, Single/Three Phase
Model # 380976-KKey Features
?
Question about this product?
Features
- 1.6" (40mm) clamp jaw opening and large dual LCD display (9999 count)
- Measures 1/3-Phase True Power (kW), Apparent Power (kVA), Reactive Power (kVAR), Horsepower (HP), Power Factor, and Phase Angle with Lead/Lag indicator
- AC+DC µA current with 10nA resolution for flame rod tests
- Auto Detect AC/DC Voltage measurements with simultaneous frequency display
- Capacitance to 7000µF with 0.001µF resolution
- High Resistance tests to 100MOhm
- Type K, °C/°F switchable, temperature to 1000°F
- Diode and Continuity tests
- Complete with test lead kit, general purpose Type K thermocouple probe, carrying case, and 9V battery
Technical Information
- AC Current1000A
- AC Voltage600V
- Jaw Size40mm
- Safety RatingCAT IV 600V
- DC Voltage600V
- DC Current1000A
- Frequency1kHz
- True Power600kW
- Apparent Power600kVA
- Reactive Power600kVAR
- Horsepower800HP
- Phase Angle-60 to +60°
- Resistance1000kΩ
- Resistance100MΩ
- Capacitance7000µF
- Temperature (Type K)-50 to 900°C
- Dimensions228 x 76 x 39mm
- Weight465g
Items Included
- two CAT IV-600V 72” (1.8m) leadextensions with right angle and straight end shrouded bananaplugs
- two modular test probe handles with stainless steeltips
- two plunger activated retractable jaw clips
- two extralarge alligator clips
