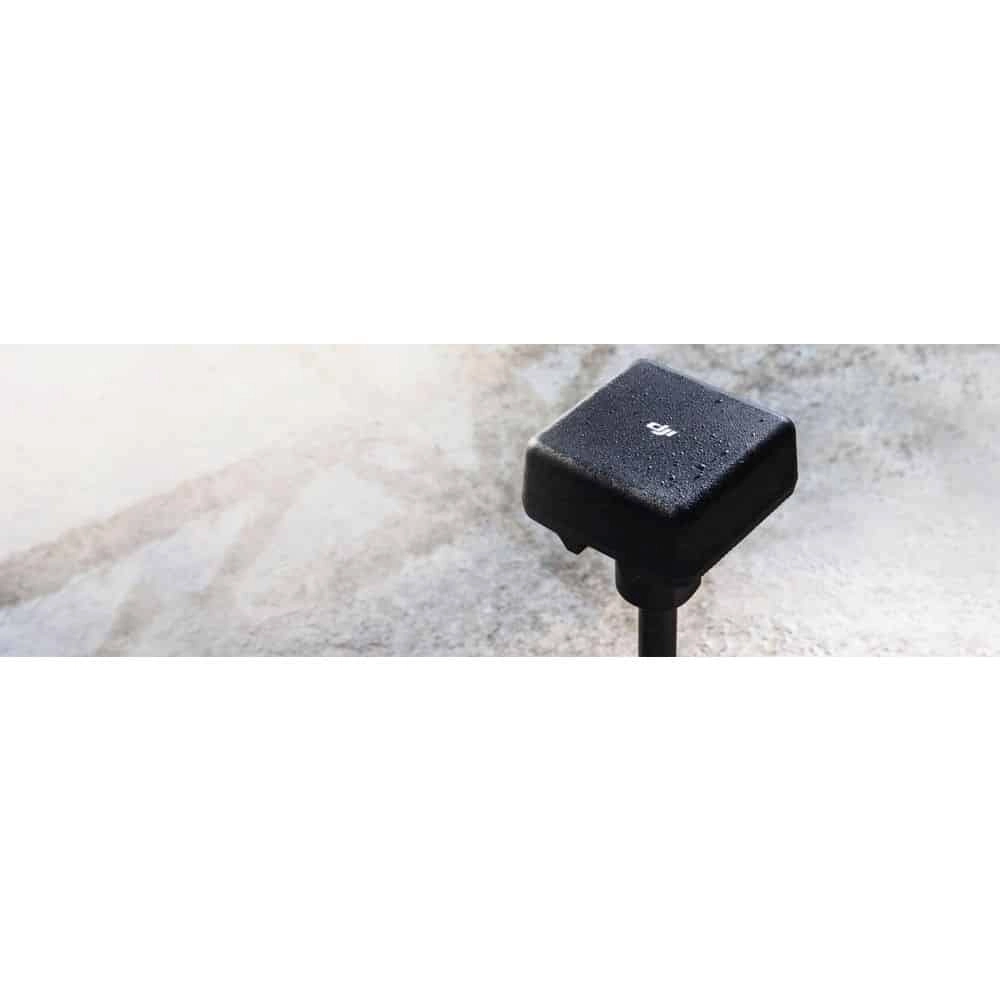

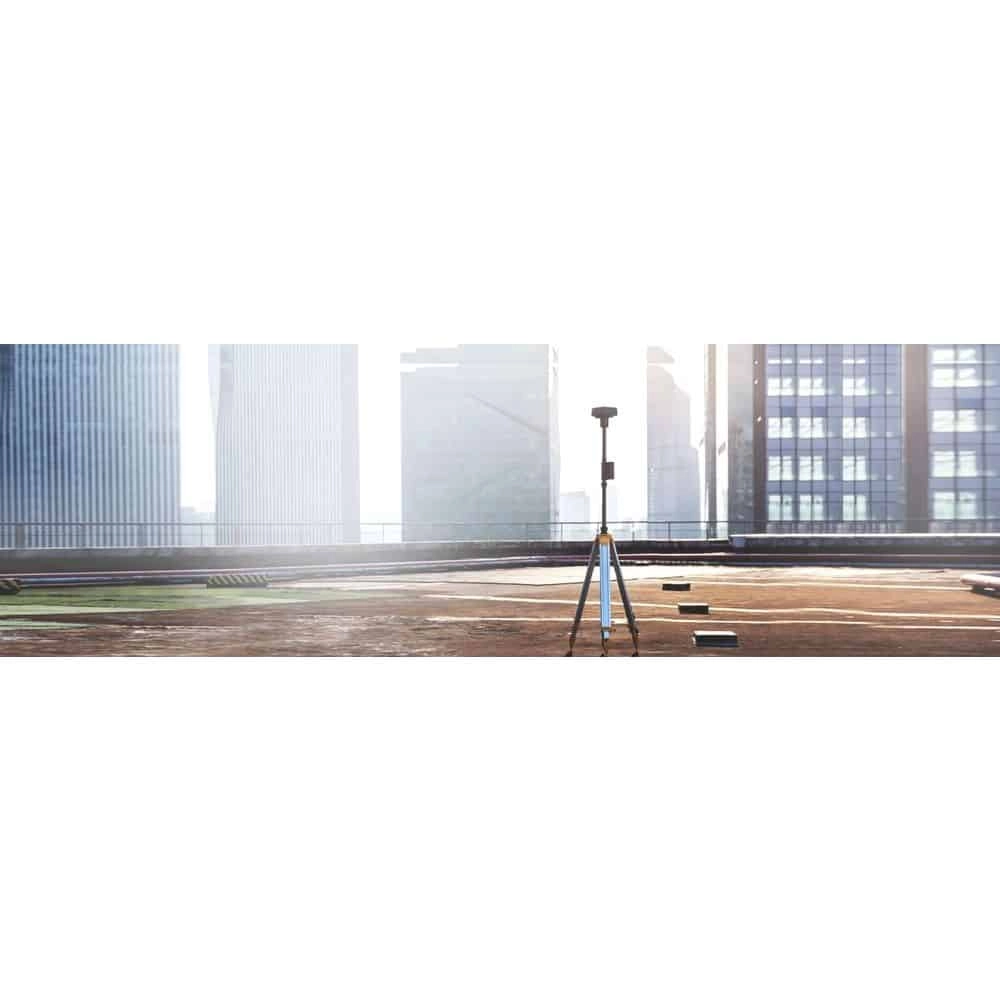

DJI DRTK2 High Precision GNSS Mobile Station, Centimeter-Level Positioning with GPS, GLONASS, Beidou and GALILEO Signals Support
Model # DRTK2Key Features
?
Question about this product?
Features
- Fully supports GPS, GLONASS, Beidou, and GALILEO signals.
- Provides real-time differential data for drones to achieve centimeter-level positioning accuracy
- Built-in high-gain antenna offers better signal reception from more satellites even with obstructions
- Supports communication via 4G, OcuSync, WiFi, and LAN, ensuring uninterrupted, stable data transmission under any application scenario
- Features IP65 level ingress protection and a lightweight carbon fiber body
- Built-in IMUs monitor movements and calibrate the tilt sensors to alert the operator of any abnormalities during the mission
Technical Information
- GPS FrequencyL1 C/A, L2, L5
- BEIDOU FrequencyB1, B2, B3
- GLONASS FrequencyF1, F2
- Galileo FrequencyE1, E5A, E5B
- Single Point Accuracy (H,V)1.5m, 3.0m (RMS)
- RTK Accuracy (H,V)1cm +1 ppm, 2cm +1 ppm (RMS)
- Ingress Protection RatingIP65
- Operating Temperature-20° to 55°C
Items Included
- D-RTK 2 Body × 1
- Extension Rod × 1
- Charging Hub × 1
- AC Power Adapter × 1
- Intelligent Battery (WB37) × 2
- Battery Cover × 1
- AC Power Cable × 1
- USB-C Cable × 1
- USB-C OTG Cable × 1
- Hex Key × 1
