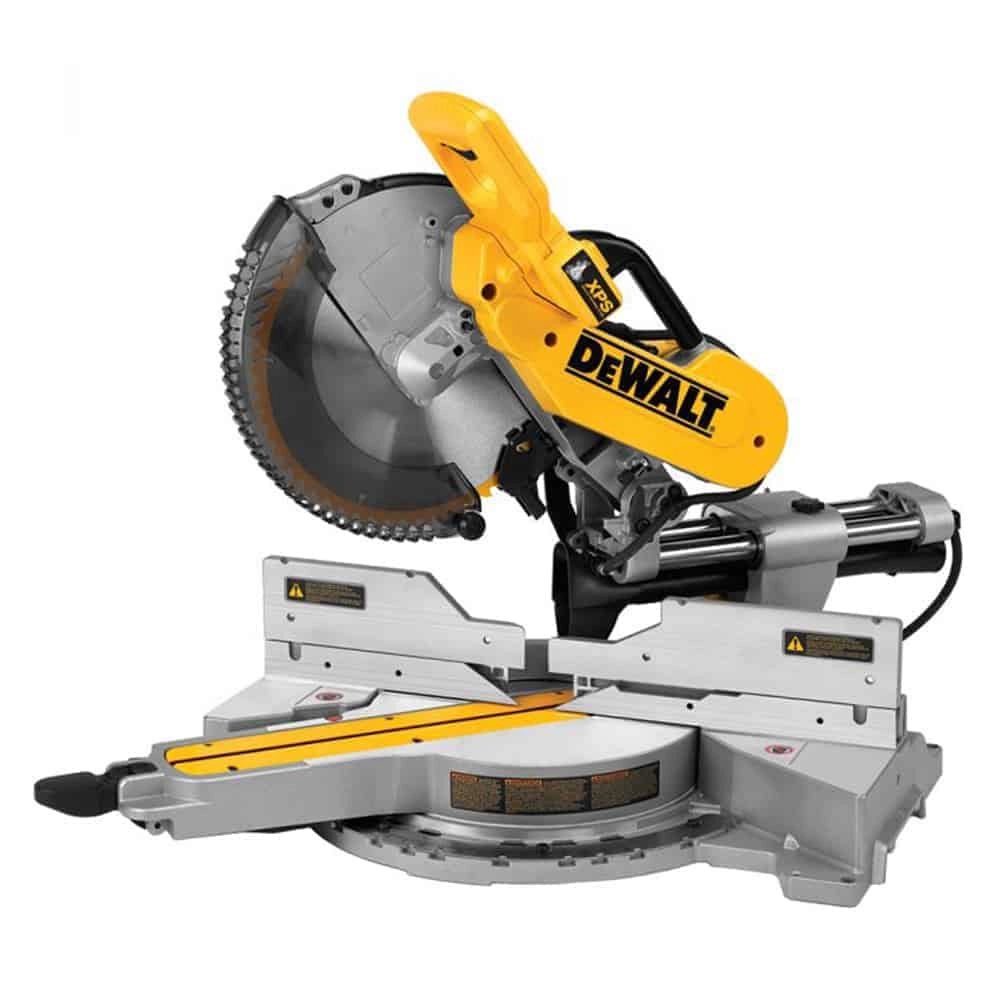

Dewalt DWS780-LX 110V 12-Inch Double Bevel Sliding Compound Miter Saw

Model #   DWS780-LX

?

Question about this product?

Speak to an expert

Features

  • Outstanding cutting performance in both small profiles and large construction timbers up to 110 x 303 mm
  • XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the workpiece for increased productivity no adjustment required
  • Heavy-duty durability with the ability to fully adjust your machine to maintain accuracy over the life fo the tool.
  • New quick release bevel stop setting provides an accurate and simple setting of bevel angles up to 49ø left and right
  • Easy to use mitre and bevel controls making the tool fast and simple to change from one set up to another
  • Cam action mitre lock function makes mitre setting faster and easier allowing the user to quickly adjust angles between 0ø – 50ø left and 0ø – 60ø right
  • Long-life Accuracy in Table and Fence Design
  • The large dual sliding fence gives maximum support in large material cuts at any angle or combination of angles

Technical Information

  • TypeMitre Saw
  • Power SourceCorded
  • Voltage110V
  • Power Input1675 Watts
  • Power Output960 Watt
  • Blade Speed1900 – 3800 rpm
  • Blade Diameter305 mm
  • Blade Bore30 mm
  • Bevel Capacity49/49°
  • Mitre Capacity [right/left]60/50°
  • Cutting Capacity at 90ø/45ø (W x H)211 x 112 mm
  • Cutting Capacity at 90ø/90ø (W x H)303 x110 mm
  • Cutting Capacity at 90ø/90ø (W x H)345 x 76 mm
  • Cutting Capacity at 45ø/90ø (W x H)268 x 63 mm
  • Cutting Capacity at 45ø/90ø (W x H)345 x 44 mm
  • Cutting Capacity at 90ø/45ø (W x H)244 x 76 mm
  • Max. Cutting Capacity at 45ø/45ø212 x 76 mm
  • Max. Depth of Cut [Saws]170 mm
  • Weight24.8 kg
  • Depth470 mm
  • Length770 mm
  • Height396 mm
  • Hand/Arm Vibration – Cutting Wood<2.5 m/s²
  • Uncertainty K 1 (Vibration)1.5 m/s²
  • Sound Power100 dB(A)
  • Sound Power Uncertainty3 dB(A)

Items Included

  • High Quality 60 tooth blade Blade spanner Dust bag Material Clamp
