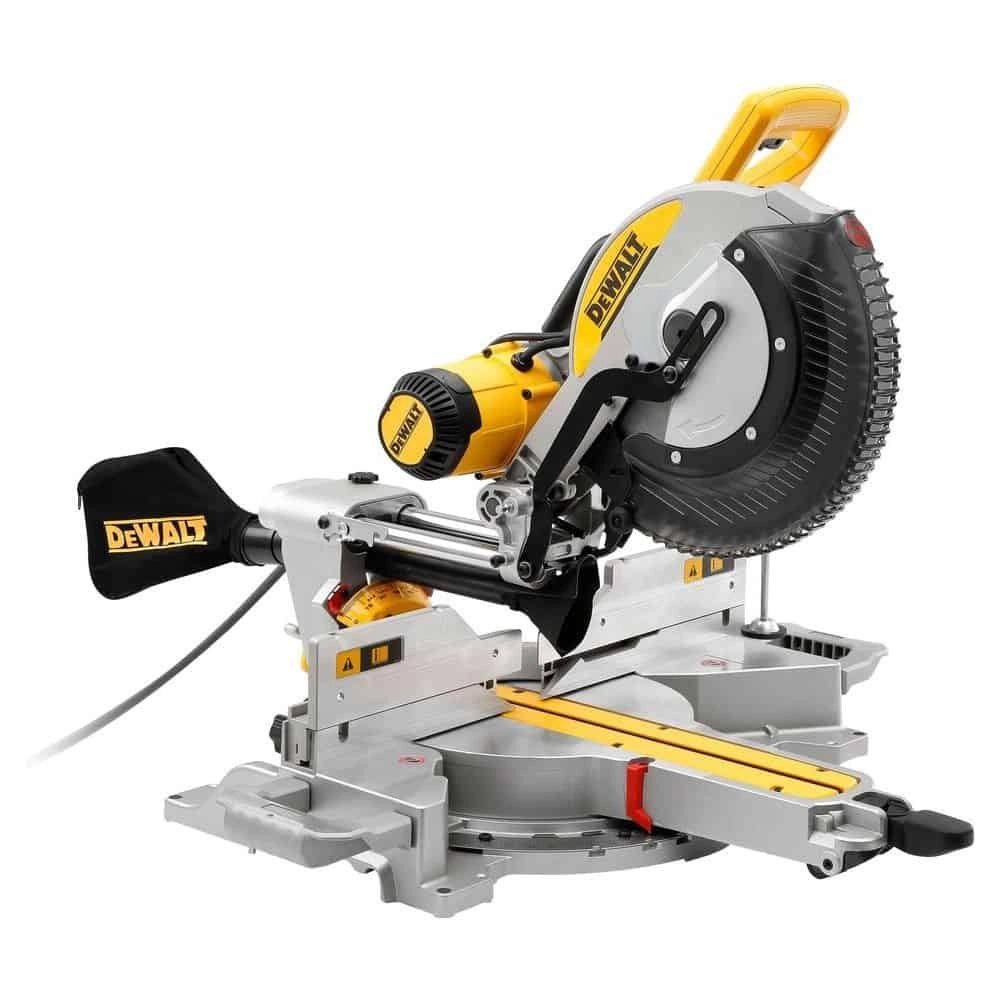

Dewalt DWS780-GB 220V 12 In. Sliding Compound Miter Saw (305mm), Variable Speed, 3800rpm, 1675W

Features

• Outstanding cutting performance in both small profiles and large construction timbers up to 110 x 303 mm

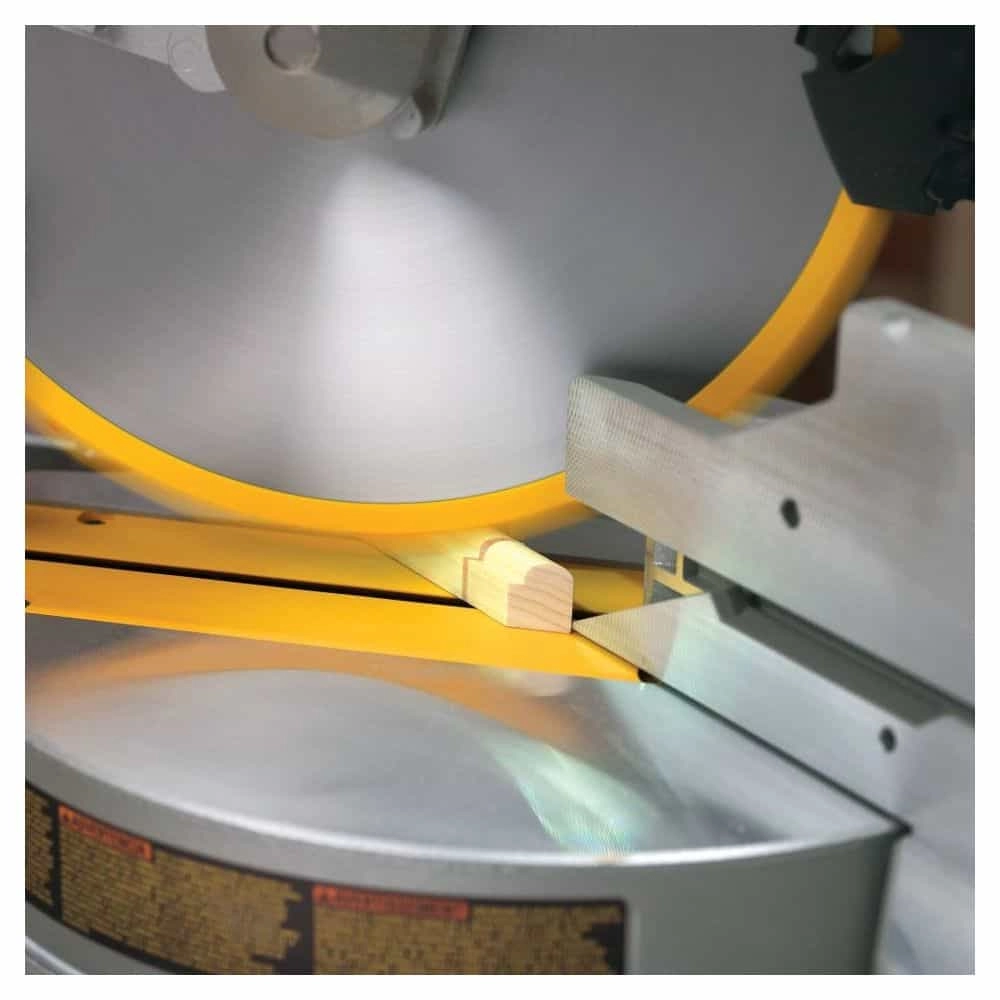

• XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the workpiece for increased productivity no adjustment required
• Heavy-duty durability with the ability to fully adjust your machine to maintain accuracy over the life of the tool
• New quick release bevel stop setting provides an accurate and simple setting of bevel angles up to 49ø left and right
• Easy to use mitre and bevel controls making the tool fast and simple to change from one set up to another
• Cam action mitre lock function makes mitre setting faster and easier allowing the user to quickly adjust angles between 0° – 50° left and 0° – 60° right
• Long-life Accuracy in Table and Fence Design

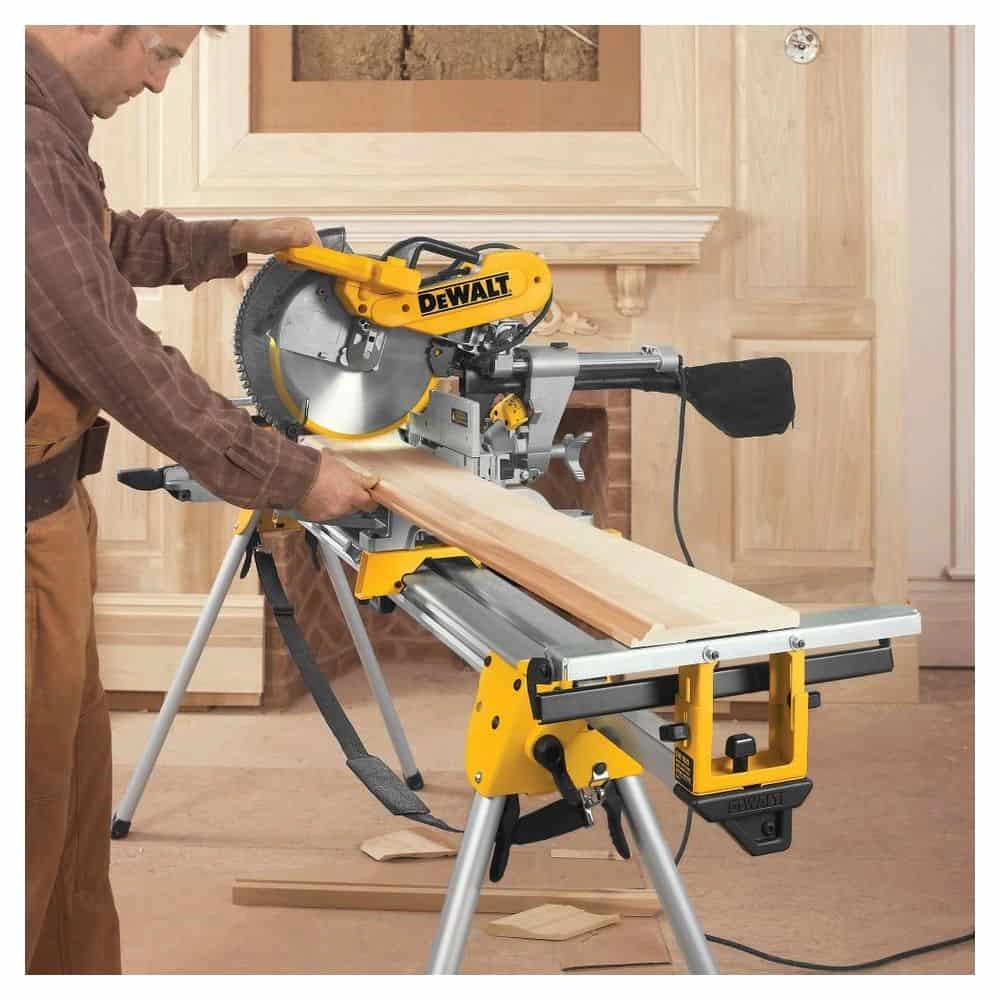

• The large dual sliding fence gives maximum support in large material cuts at any angle or combination of angles

Technical Information

• TypeMitre Saw
• Power SourceCorded
• Voltage220V
• Power Input1675 Watts
• Power Output960 Watt
• Blade Speed1900 – 3800 rpm
• Blade Diameter305 mm
• Blade Bore30 mm

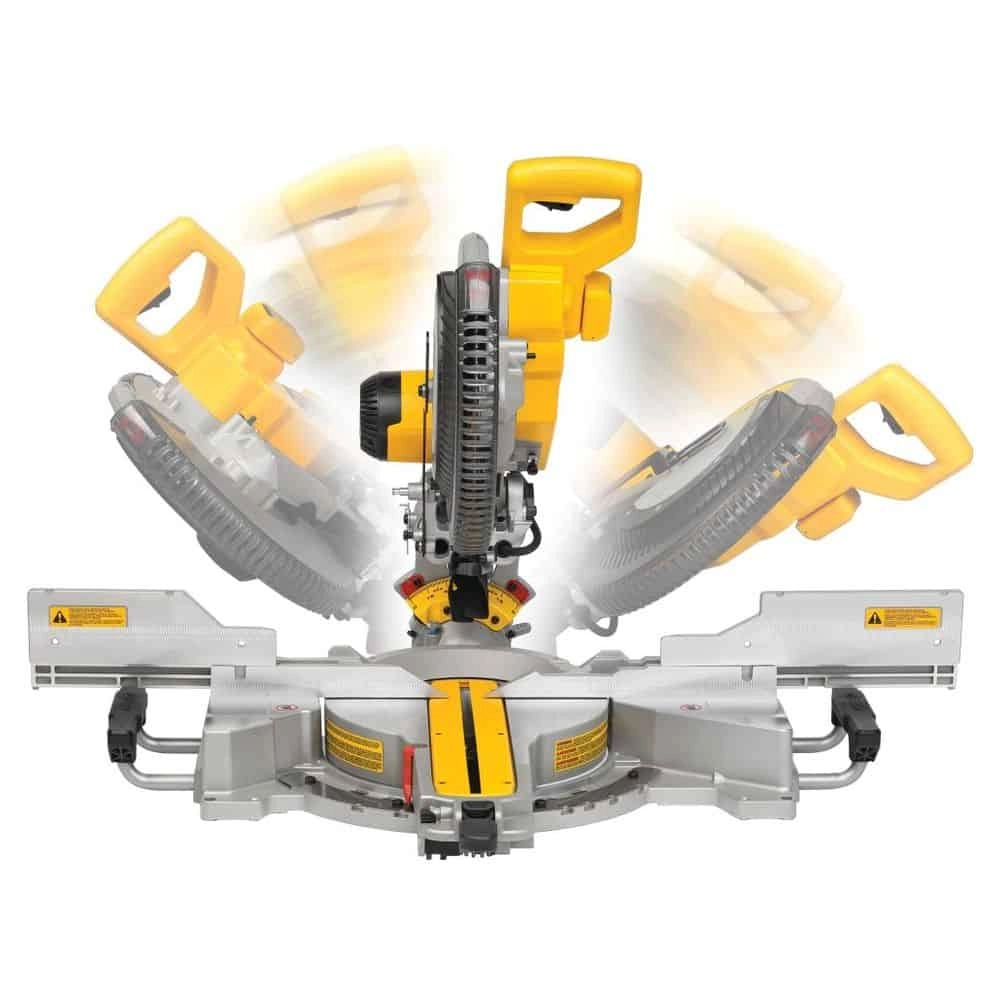

• Bevel Capacity49/49°
• Mitre Capacity [right/left]60/50°
• Cutting Capacity at 90ø/45ø (W x H)211 x 112 mm
• Cutting Capacity at 90ø/90ø (W x H)303 x110 mm
• Cutting Capacity at 90ø/90ø (W x H)345 x 76 mm
• Cutting Capacity at 45ø/90ø (W x H)268 x 63 mm
• Cutting Capacity at 45ø/90ø (W x H)345 x 44 mm
• Cutting Capacity at 90ø/45ø (W x H)244 x 76 mm
• Max. Cutting Capacity at 45ø/45ø212 x 76 mm
• Max. Depth of Cut [Saws]170 mm
• Weight24.8 kg
• Depth470 mm
• Length770 mm
• Height396 mm
• Hand/Arm Vibration – Cutting Wood<2.5 m/s²
• Uncertainty K 1 (Vibration)1.5 m/s²
• Sound Power100 dB(A)
• Sound Power Uncertainty3 dB(A)

Items Included

• 1x DWS780 Mitre saw
• 1x High quality 60 tooth blade

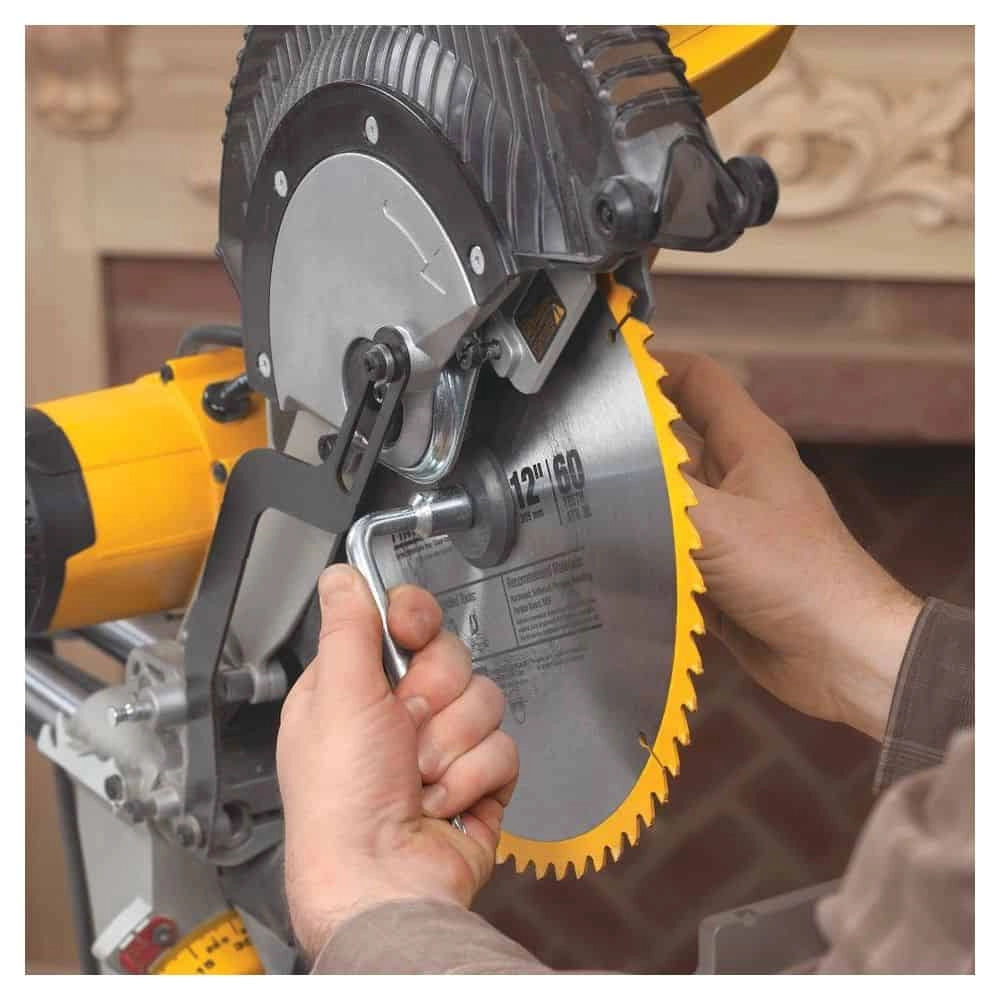

• 1x Blade spanner
• 1x Dust bag
• 1x Material Clamp

Downloads

Datasheet
