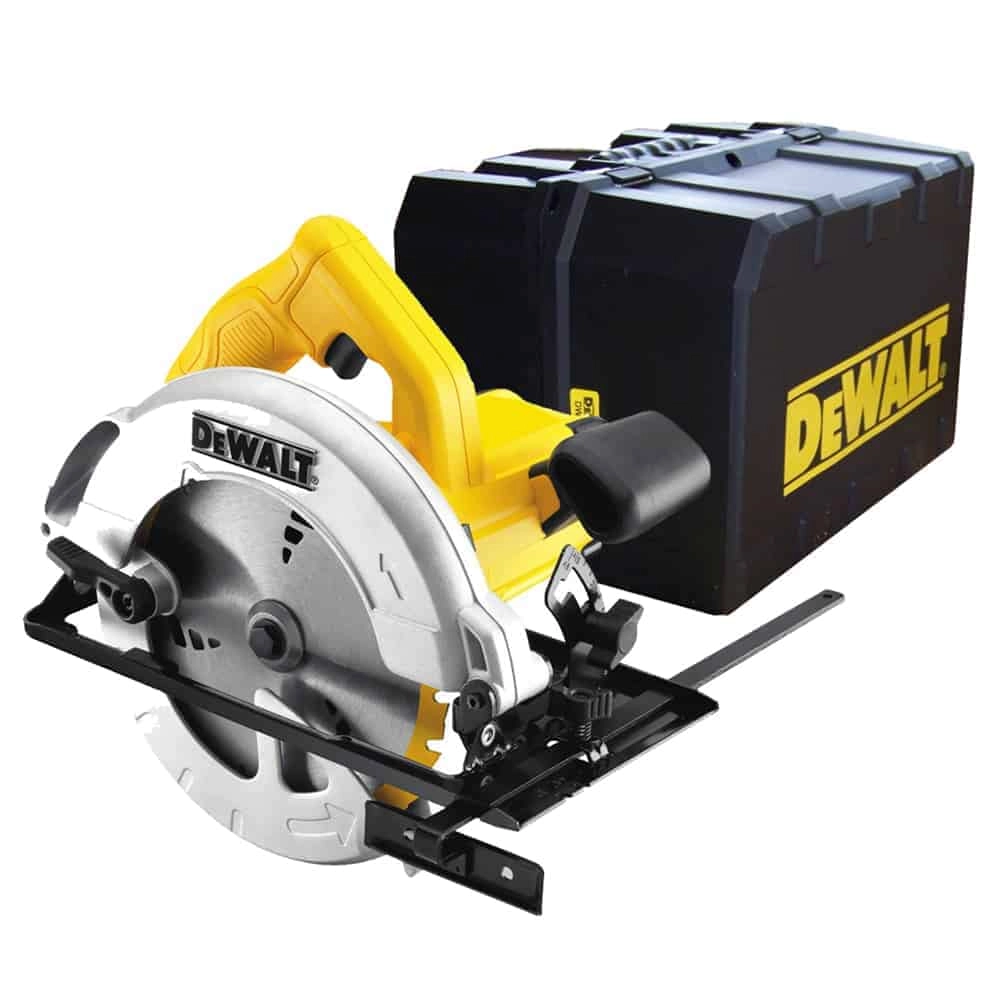

Dewalt DWE560-LX 110V 184mm Compact Circular Saw
Model # DWE560-LXDiscontinued
Key Features
?
Question about this product?
Features
- Compact; Lightweight; Easy to use a circular saw with 65mm depth of c
- High power 1350W motor gives an increased cutting performance
- Cutaway inner guard gives an improved line of sight to cutting line
- Dust blower clears dust and debris from the cut line
- Efficient dust extraction port to minimize airborne dust particles when connected to a dust extraction unit
- Direct compatibility with DEWALT AirLock system for easy; secure connection to extraction hose
Technical Information
- Power Input 1350 Watts
- Power Output 850 Watt
- No Load Speed 5500 rpm
- Blade Diameter 184 mm
- Blade Bore 16 mm
- Bevel Capacity 48°
- Max. Depth of Cut at 90§ 65 mm
- Max. Depth of Cut at 45§ 42 mm
- Weight 3.7 kg
- Length 286 mm
- Height 226 mm
- Hand/Arm Vibration 2.5 m/s²
- Uncertainty K 1 (Vibration) 1.5 m/s²
- Sound Pressure 88 dB(A)
- Sound Pressure Uncertainty 3 dB(A)
- Sound Power 99 dB(A)
- Sound Power Uncertainty 3 dB(A)
Items Included
- 24 tooth saw blade Rip fence Blade spanner Dust Extraction Spout
