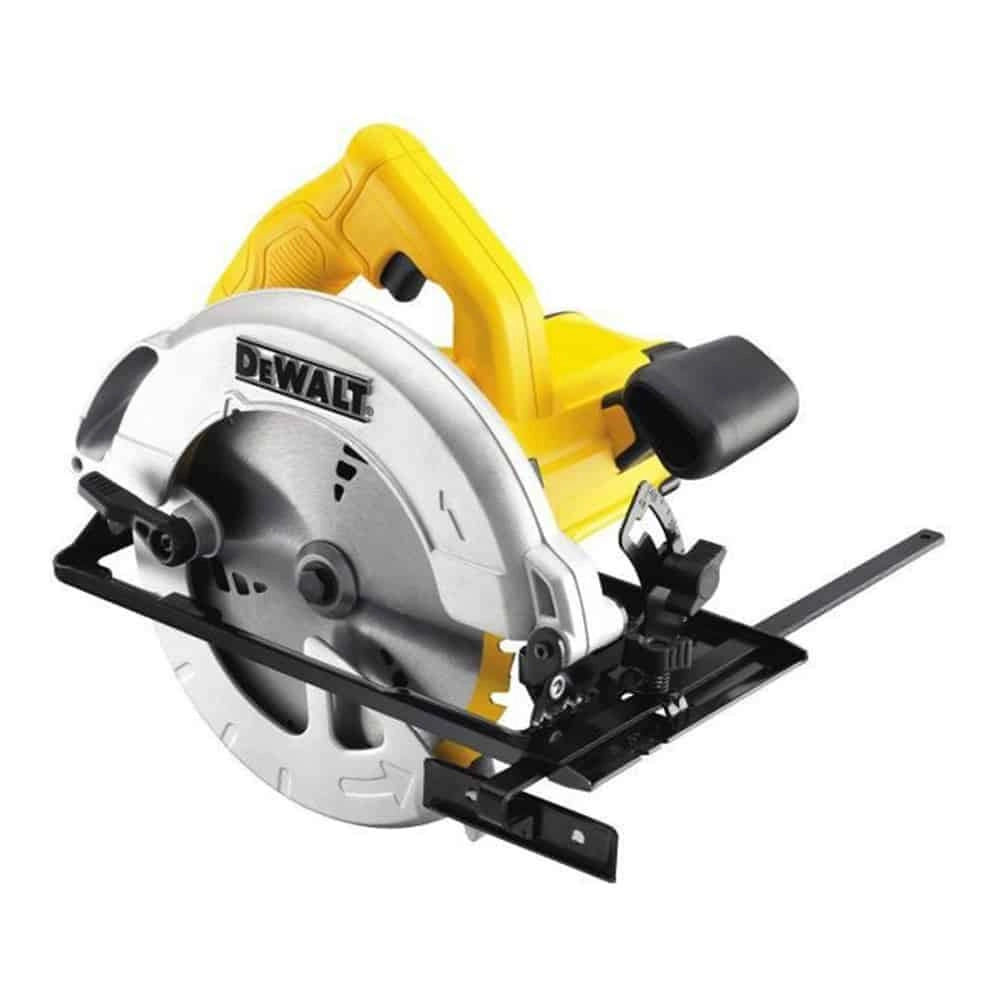

Dewalt DWE560-B5 220V 184mm Compact Circular Saw
Model # DWE560-B5Key Features
?
Question about this product?
Features
- Compact; Lightweight; Easy to use a circular saw with 65mm depth of cut
- High power 1350W motor gives an increased cutting performance
- Cutaway inner guard gives an improved line of sight to cutting line
- Dust blower clears dust and debris from the cut line
- Efficient dust extraction port to minimize airborne dust particles when connected to a dust extraction unit
- Direct compatibility with DEWALT Airlock system for easy; secure connection to extraction hose
Technical Information
- Power SourceCorded
- Voltage220V
- Power Input1350 Watts
- Power Output850 Watt
- No Load Speed5500 rpm
- Blade Diameter184 mm
- Blade Bore16 mm
- Bevel Capacity48°
- Max. Depth of Cut at 90§65 mm
- Max. Depth of Cut at 45§42 mm
- Weight3.7 kg
- Length286 mm
- Height226 mm
- Hand/Arm Vibration2.5 m/s²
- Uncertainty K 1 (Vibration)1.5 m/s²
- Sound Pressure88 dB(A)
- Sound Pressure Uncertainty3 dB(A)
- Sound Power99 dB(A)
- Sound Power Uncertainty3 dB(A)
Items Included
- 24 tooth saw blade Rip fence Blade spanner
