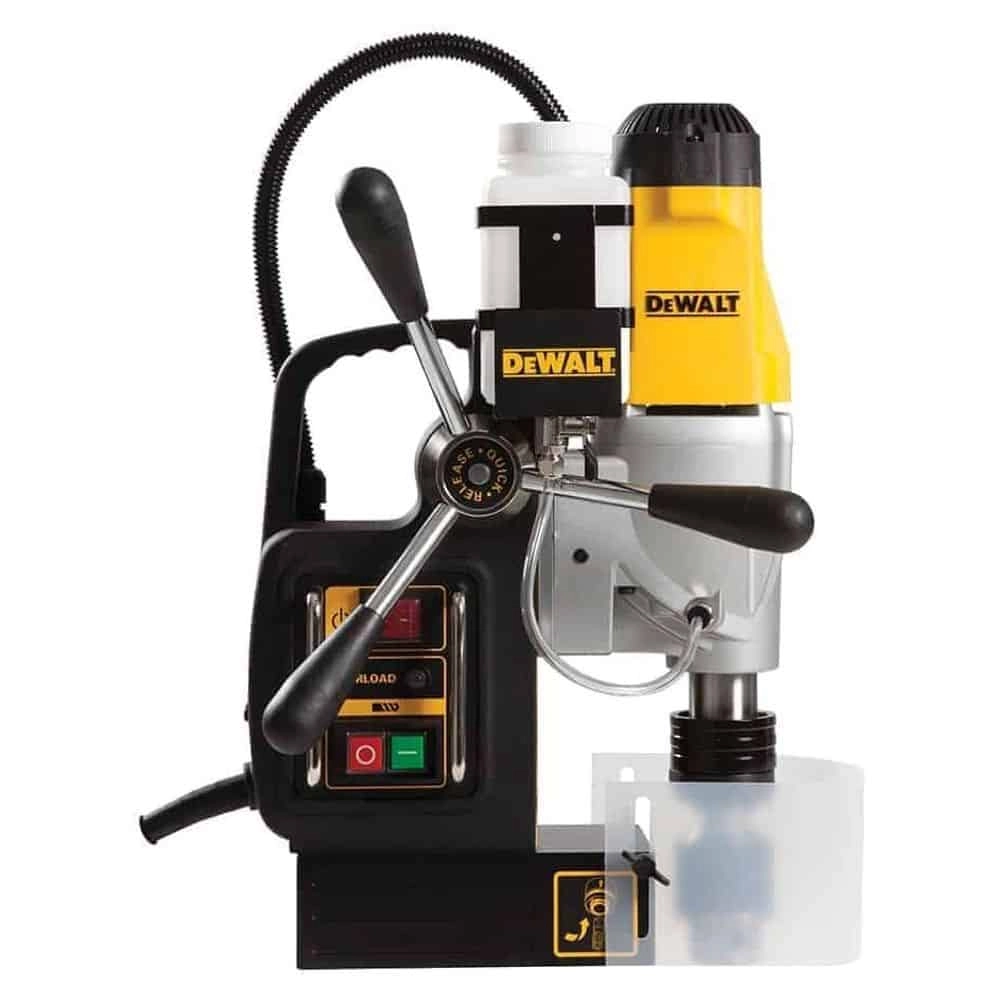

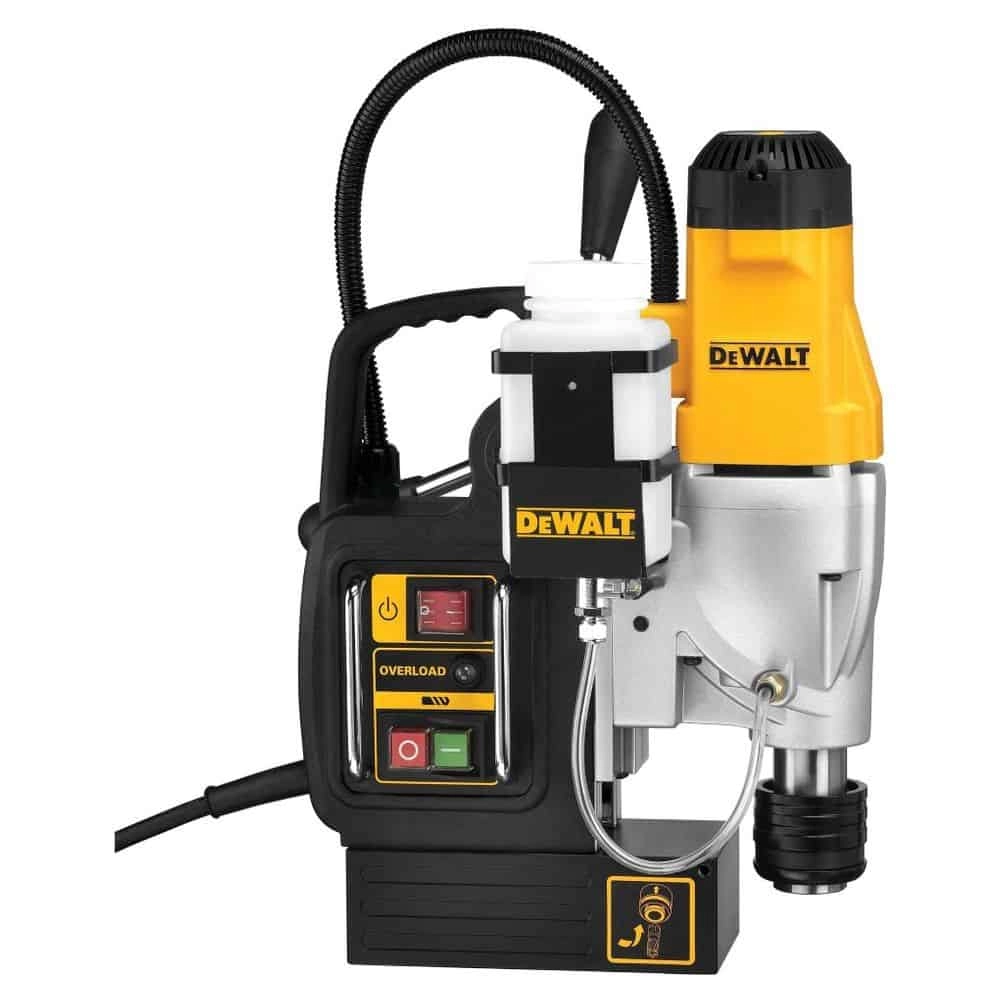

Dewalt DWE1622K-LX 110V Magnetic Drill Press, 50mm, 450rpm, 2-Speed, 1200W

Features

• Delivers high level of performance for fast; clean and accurate drilling into steel
• Compact and light weight unit which is both easy to transport and easy to position for drilling

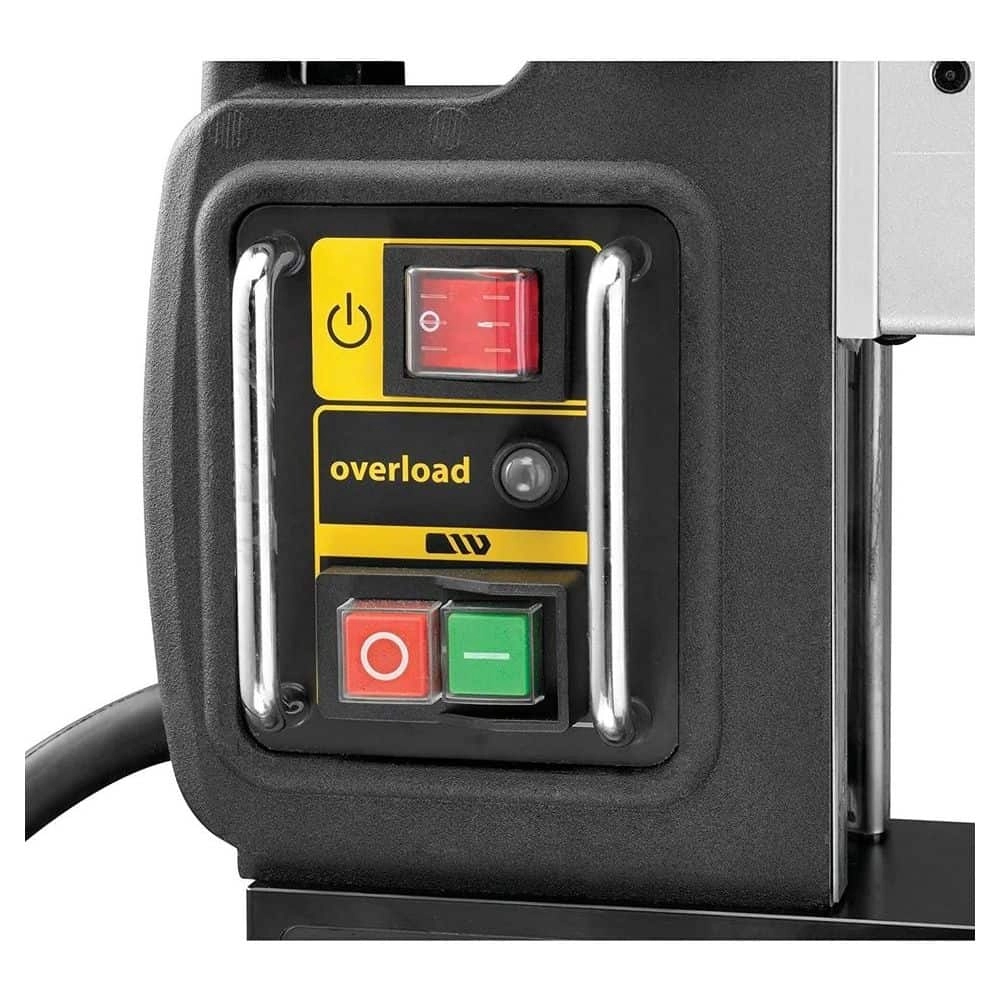

• Overload protection with 3 stage LED indicator allows improved user control and prevents motor damage
• The universal quick release cutter holder is quick and easy to operate : no Allen key needed. It accepts any annular cutter with 19 mm round shank (Weldon) with one or more flats
• No volt switch prevents inadvertent restart after power failure

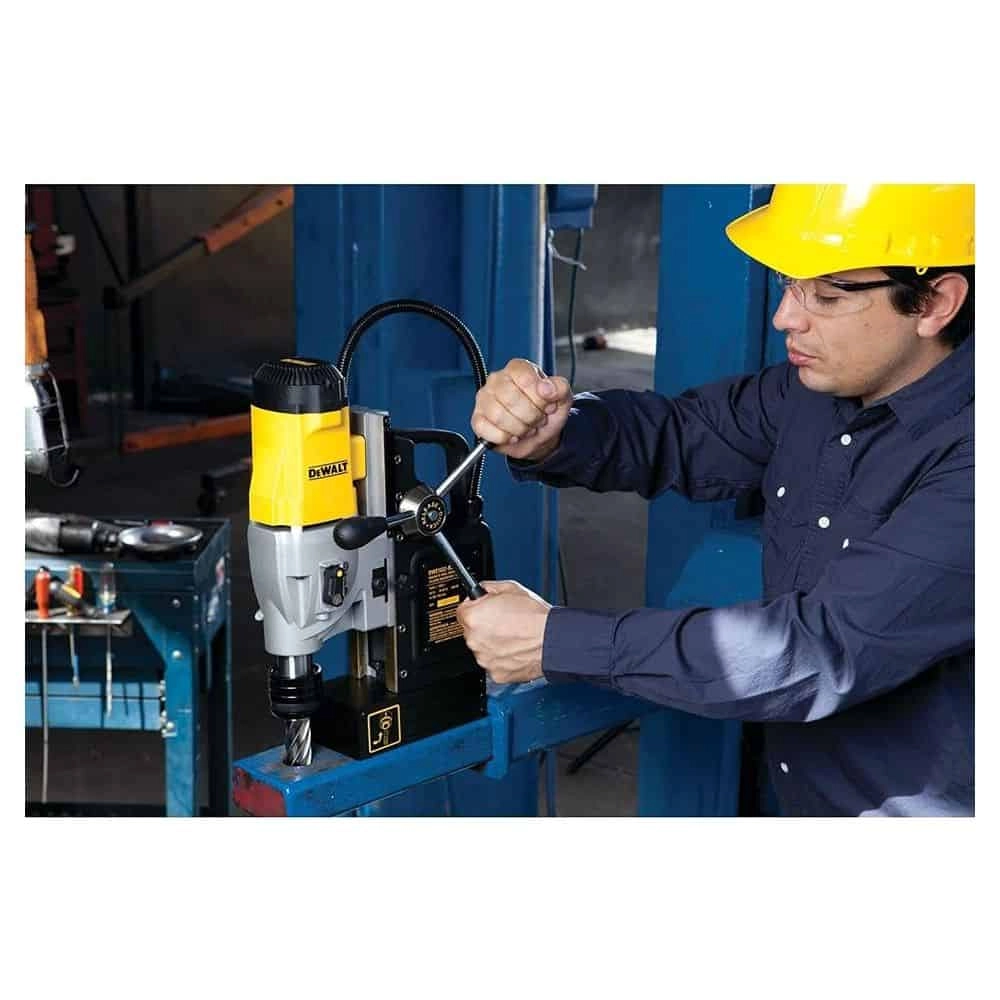

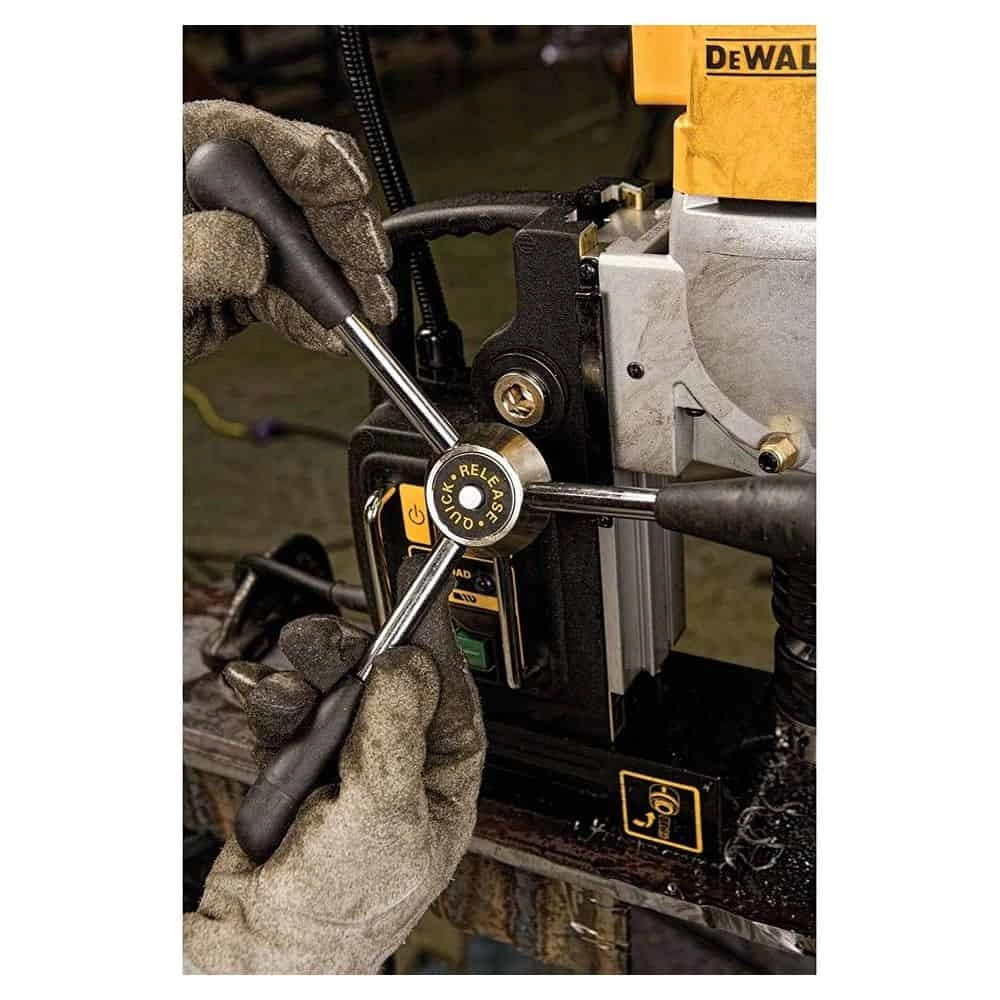

• Push button reversible press handle offers tool-free handle set-up
• 2 mechanical speeds for optimized performance

Technical Information

• Power SourceCorded
• Voltage110V
• Motor TypeBrushed
• Power Input1200 Watts
• No Load Speed300/450 rpm
• Cutter holder19mm Weldon Shank (3/4")
• Max cutting diameter with cutters50mm
• Drill point pressure317 Kg
• Clamping force3800 N
• Length of drill stroke147mm
• Weight14.55 kg
• Magnetic base dimensions180 x 84mm
• Sound Pressure91.5 dB(A)
• Sound Pressure Uncertainty3 dB(A)
• Sound Power102.5 dB(A)
• Sound Power Uncertainty3 dB(A)

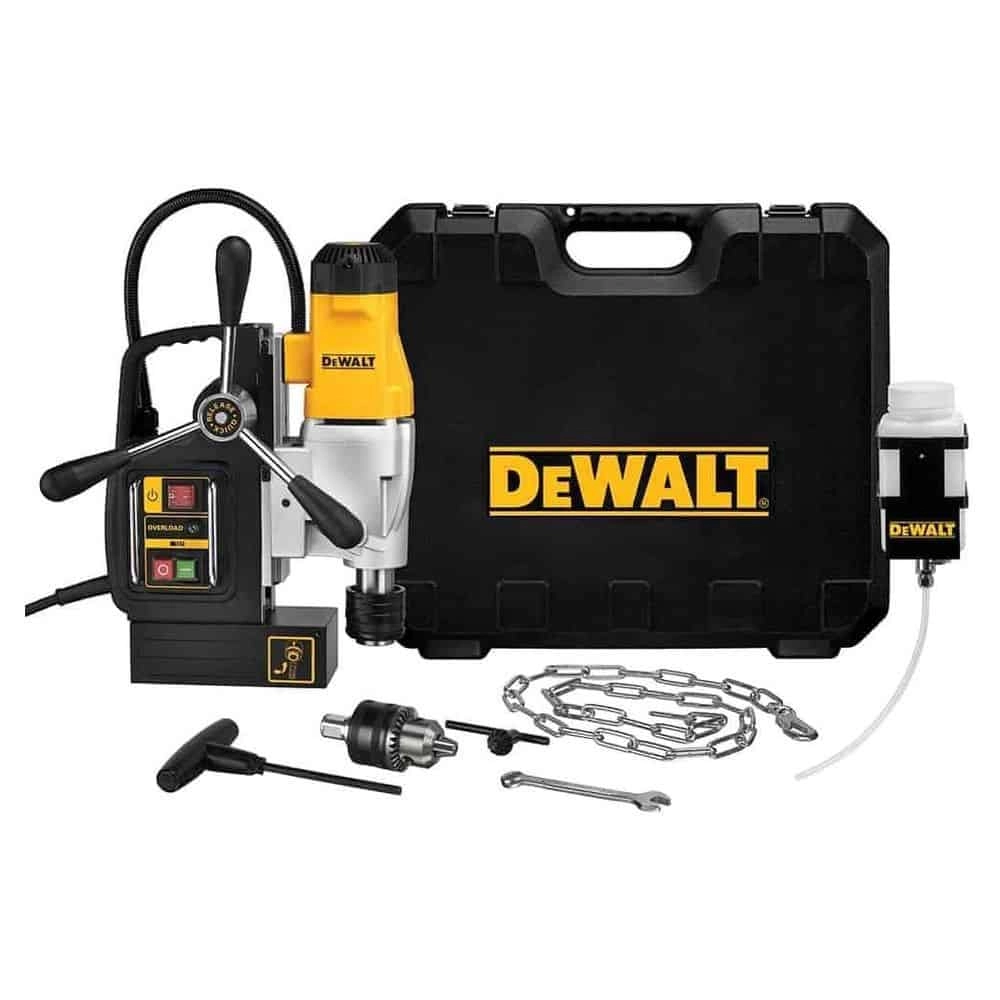

Items Included

• 1x Dw1622 Drill Press
• 1x 16mm Chuck & Adapter
• 1x Quick Release Cutter Holder

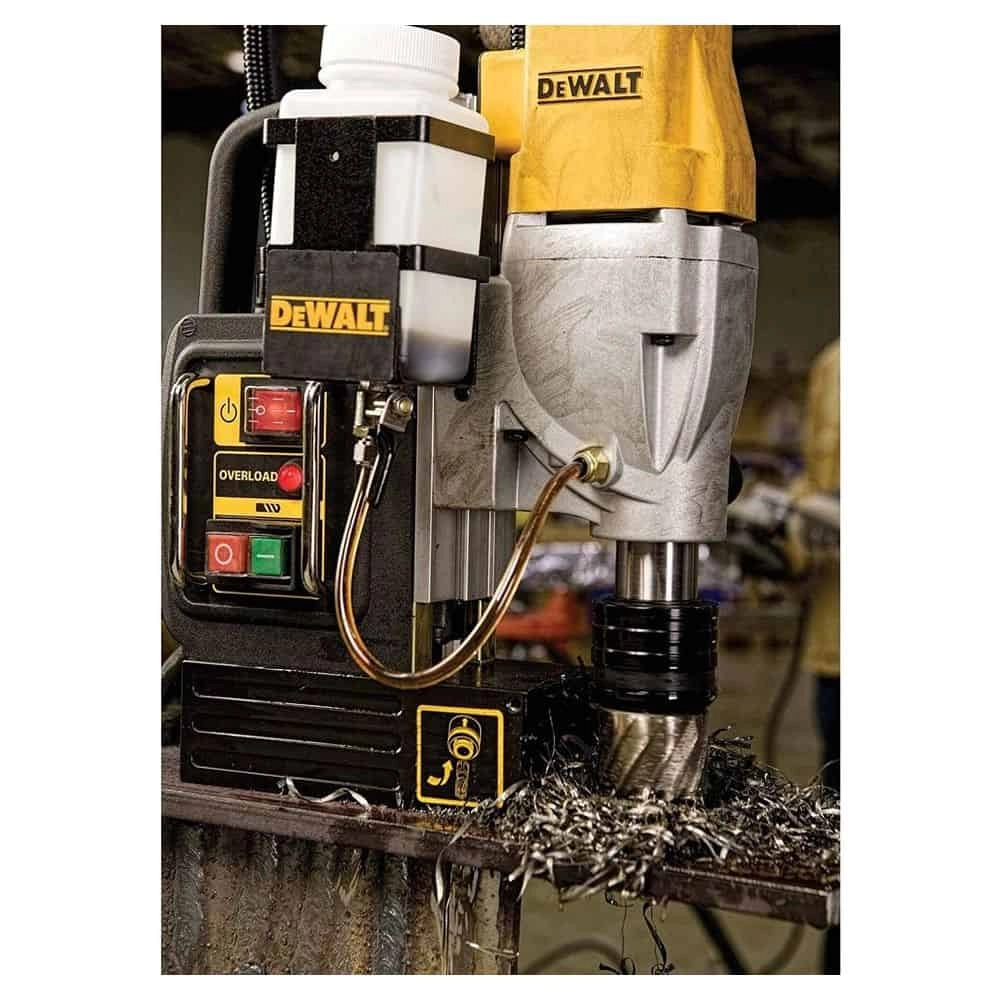

• 1x Gravity Fed Cutting Fluid Tank
• 1x Safety Strap

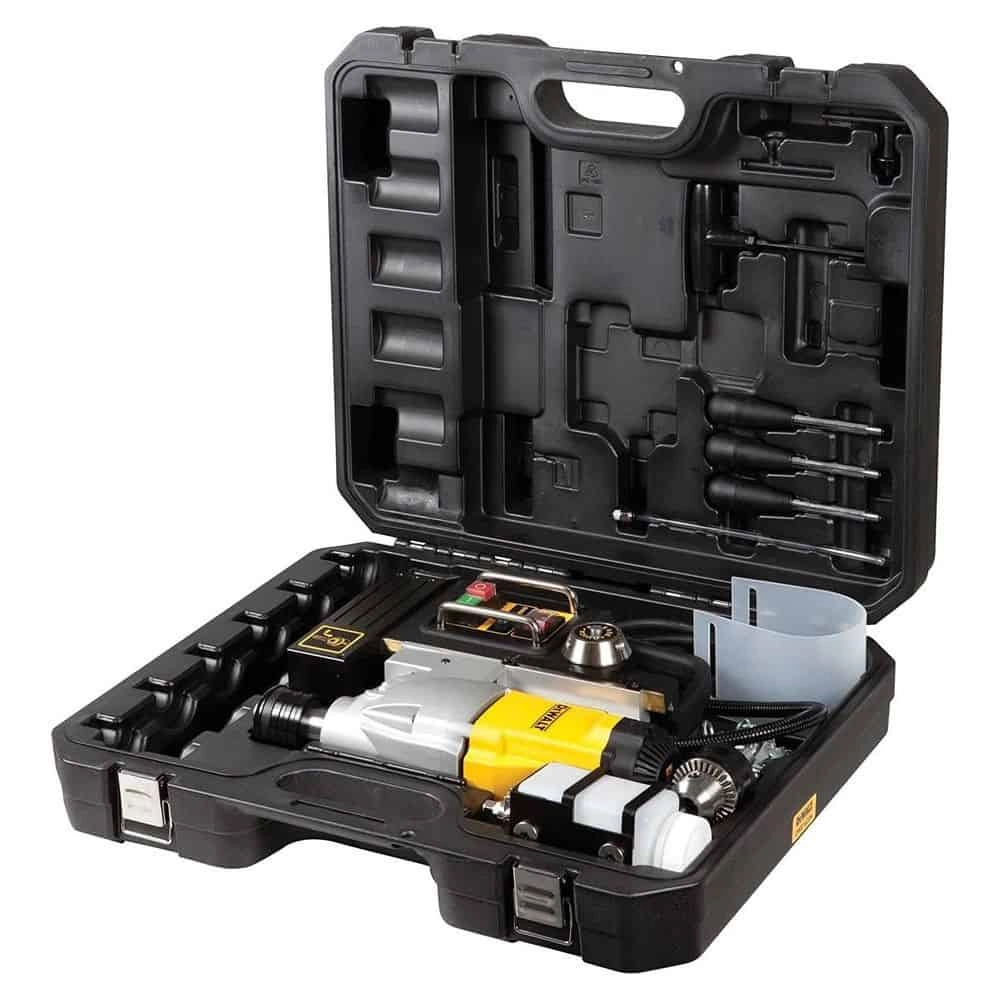

• 1x Heavy Duty Carrying Case
• 1x Reversible Press Handle
• 1x Drilling Guard
