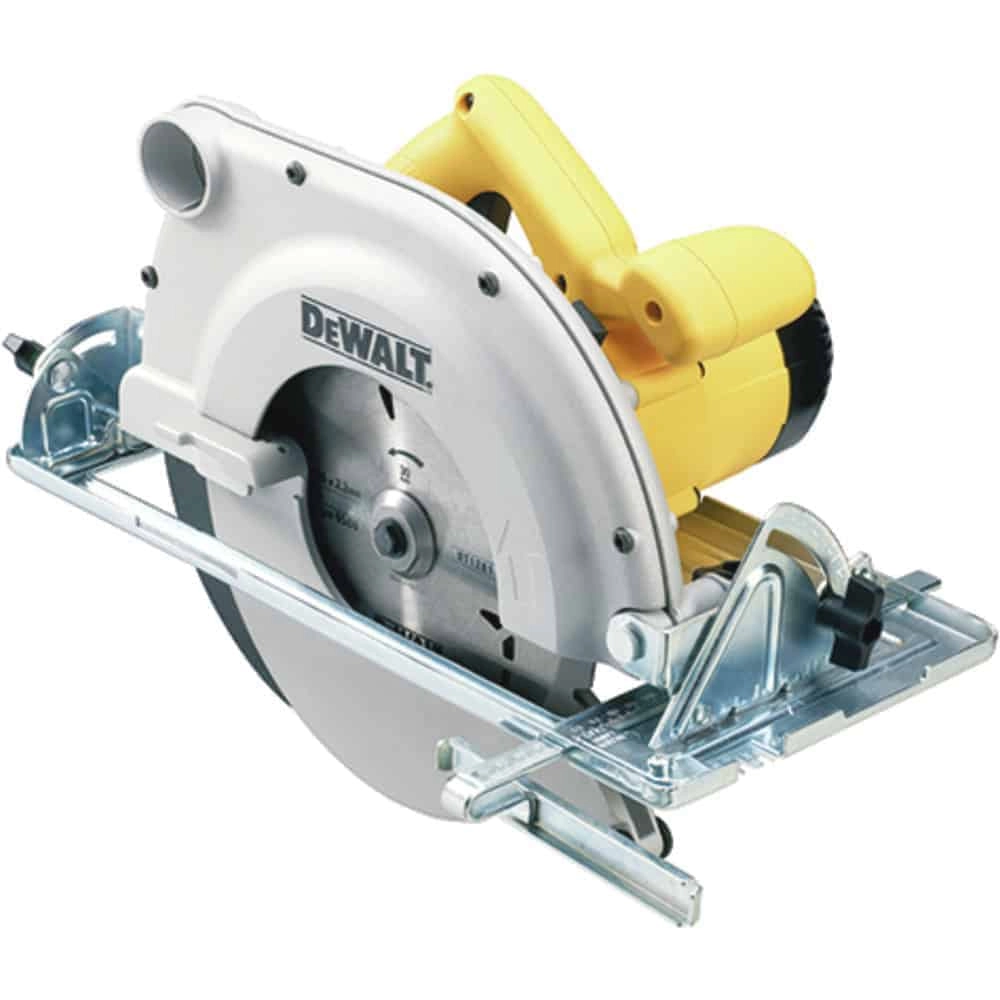

Dewalt D23700-LX 110V 235mm Circular Saw

Model #   D23700-LX

?

Question about this product?

Speak to an expert

Features

  • High power; durable motor delivers excellent power even at a maximum depth of cut
  • Stable block construction for low vibration running and long service life
  • Spindle lock for ease of blade change
  • Optimum balance for fatigue-free operation
  • Additional handle for two-handed work
  • Steel shoe for added durability
  • Protection hood for sawdust extraction

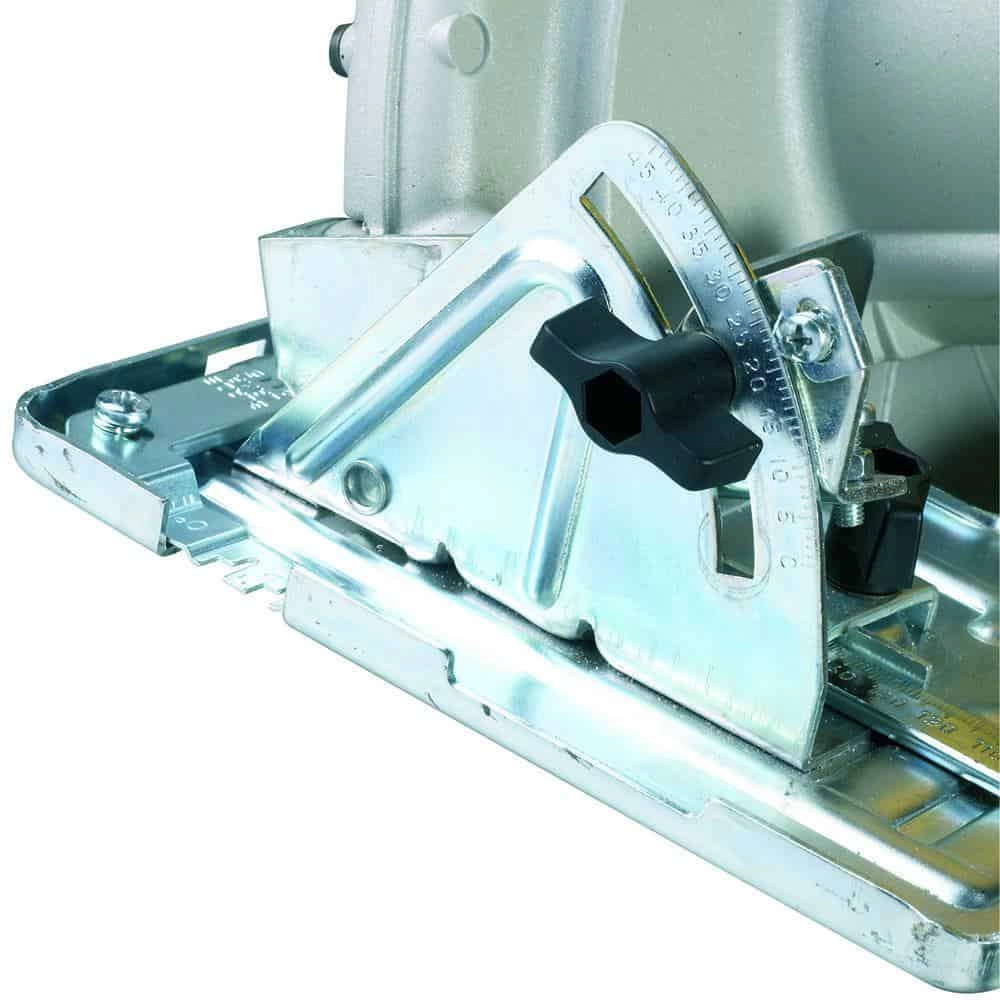

  • Variable adjustment of the mitre angle to 45° for added versatility

Technical Information

  • Power SourceCorded
  • Voltage110V
  • Power Input1750 Watts
  • No Load Speed4700 rpm
  • Blade Diameter235 mm
  • Blade Bore30 mm
  • Bevel Capacity45°
  • Max. Depth of Cut at 90§86 mm
  • Max. Depth of Cut at 45§62 mm
  • Weight8.2 kg
  • Length430 mm
  • Height290 mm
  • Hand/Arm Vibration2.5 m/s²
  • Uncertainty K 1 (Vibration)1.5 m/s²
  • Sound Pressure99 dB(A)
  • Sound Pressure Uncertainty3 dB(A)
  • Sound Power110 dB(A)
  • Sound Power Uncertainty3 dB(A)

Items Included

  • 24 tooth Precision saw blade
  • Rip fence
  • Blade spanner
